PDC Bits

PDC (Polycrystalline Diamond Compact) bits are high-performance, fixed-cutter drilling tools that use synthetic diamond “buttons” to shear through rock. Unlike tricone bits that crush rock with a “point-loading” action, PDC bits use a shearing/scraping motion, making them significantly faster in the right formations.
Key Components & Design

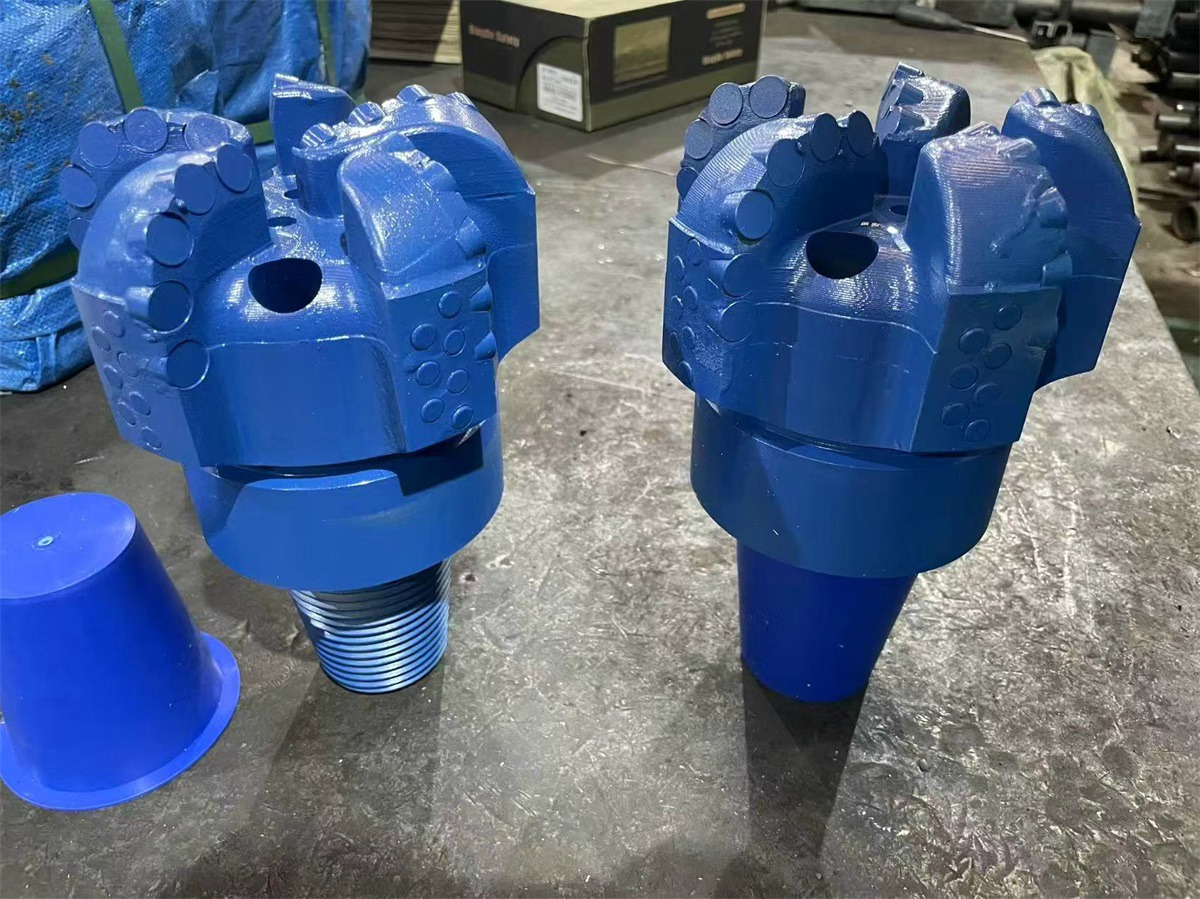

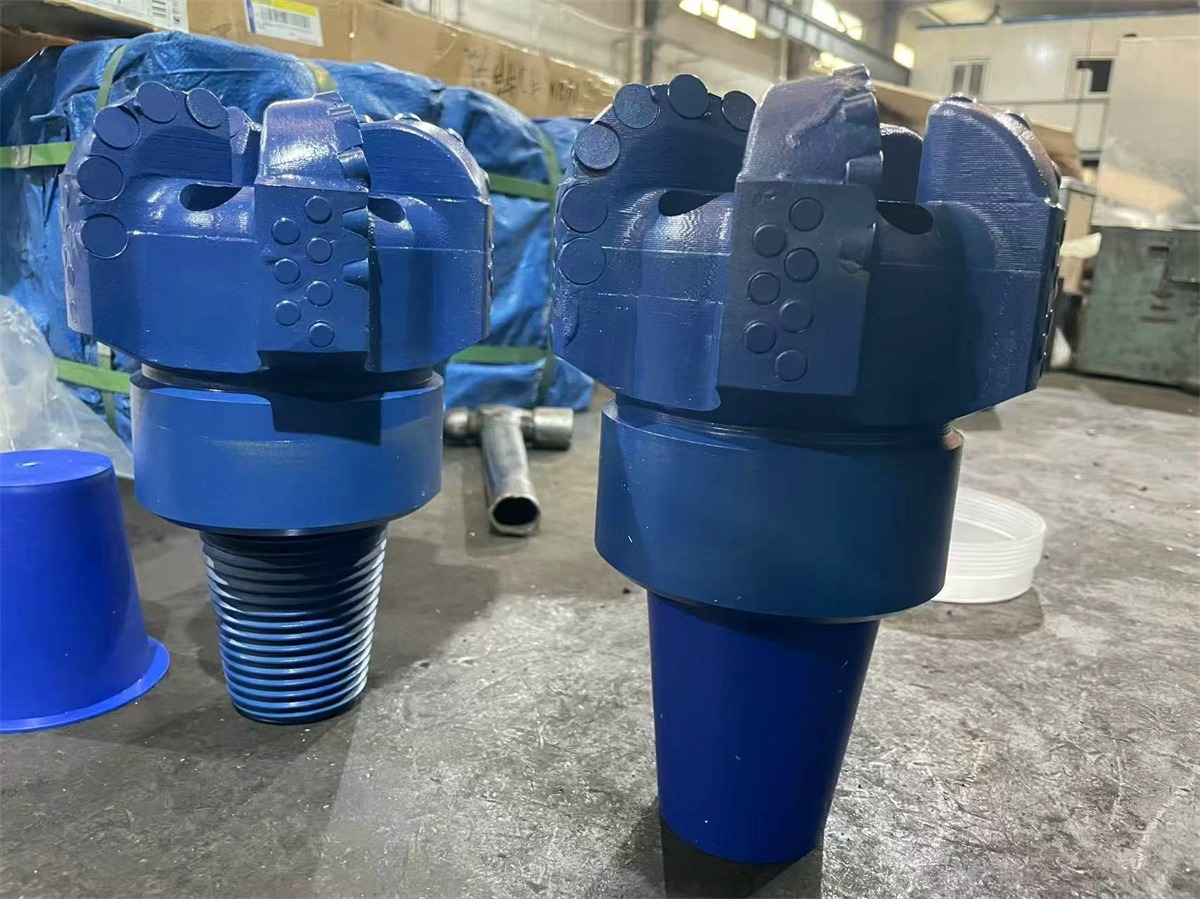

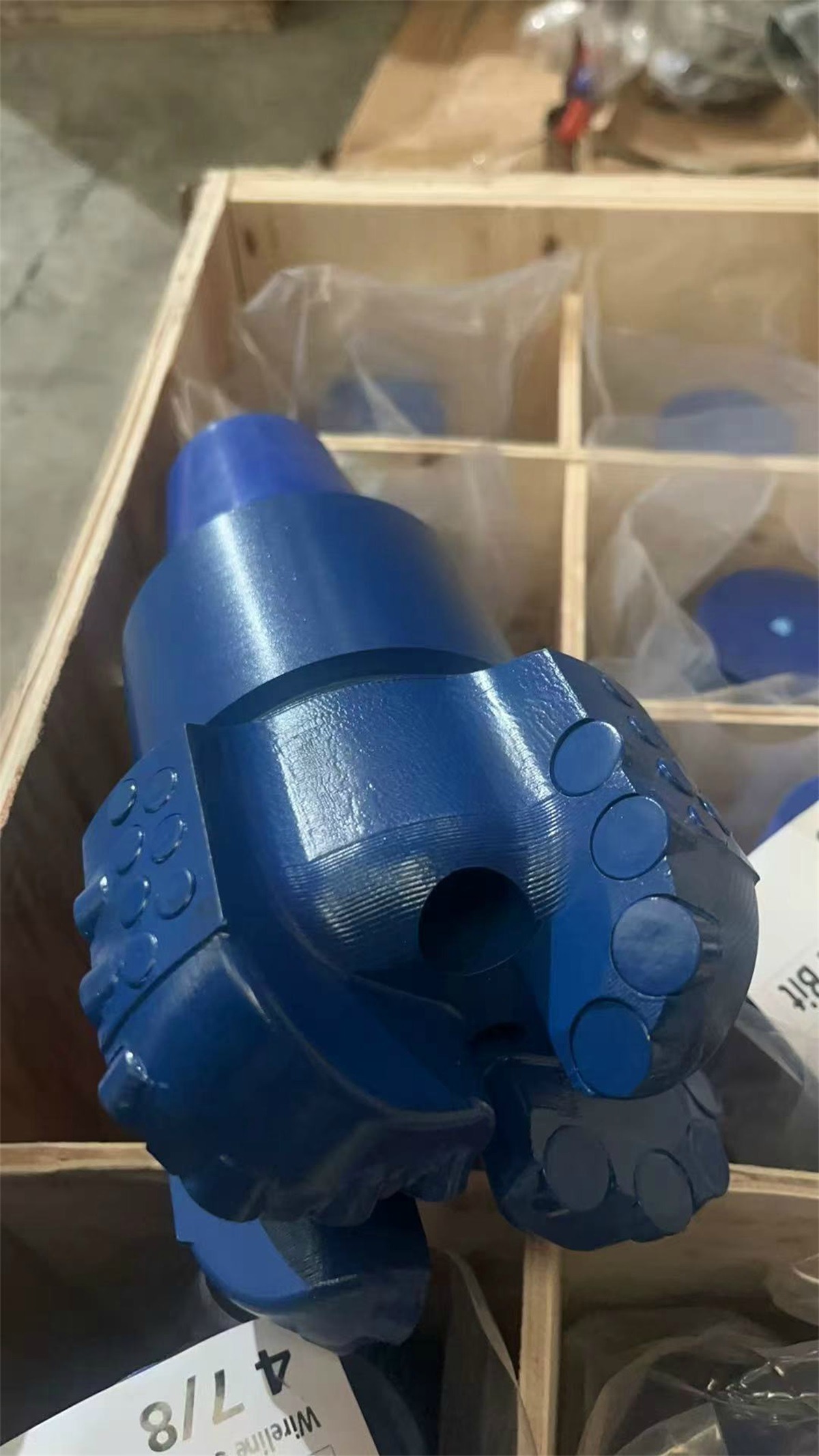

PDC Cutters: These are the circular black “buttons” on the bit face. They consist of a layer of synthetic polycrystalline diamond bonded to a tungsten carbide substrate, combining extreme hardness with impact resistance.
Bit Body:
Steel Body: Preferred for soft, non-abrasive rock; easier to manufacture in large diameters and better for high-impact drilling.
Matrix Body: Made of tungsten carbide powder; highly resistant to abrasion and erosion, making it the choice for high-sandstone or abrasive environments.

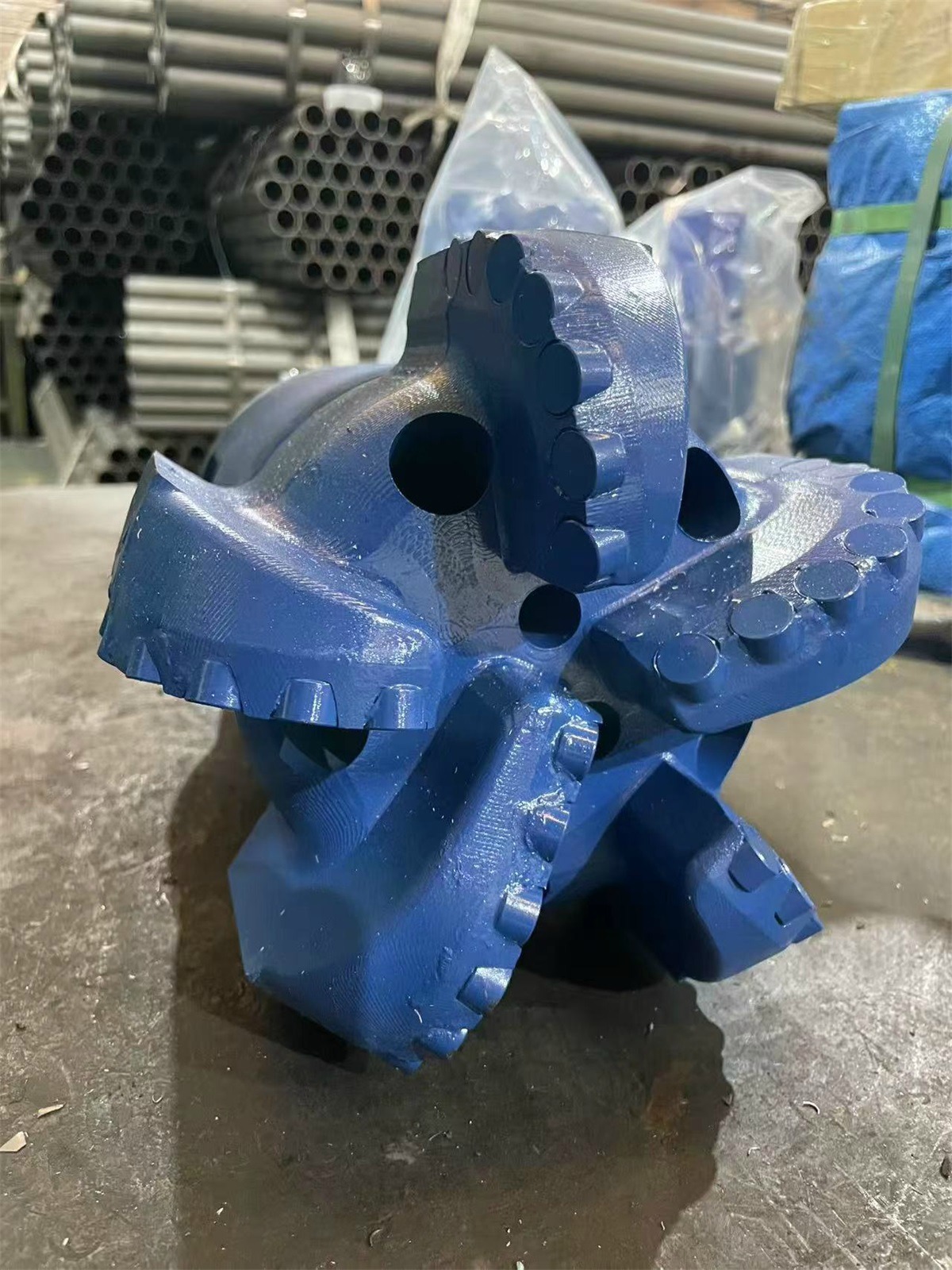

Junk Slots & Nozzles: Large open areas (junk slots) allow drilling fluid to wash away cuttings quickly, while replaceable nozzles focus fluid flow to cool the cutters and prevent “bit balling” in sticky clay.
Types of PDC Bits
Core Bits: Designed for wireline core drilling (NQ, HQ, PQ). They cut an annular ring to retrieve a rock core.

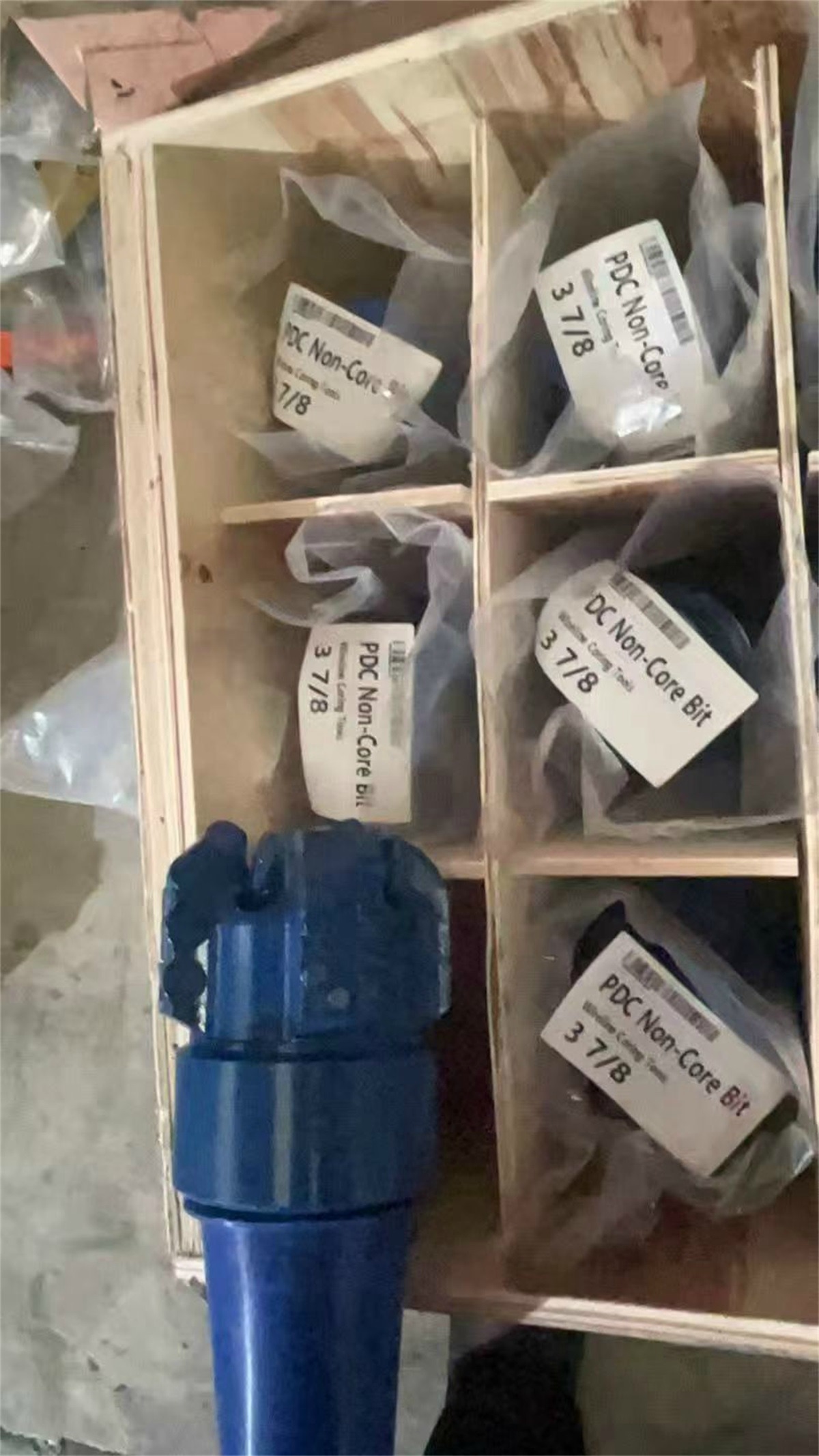

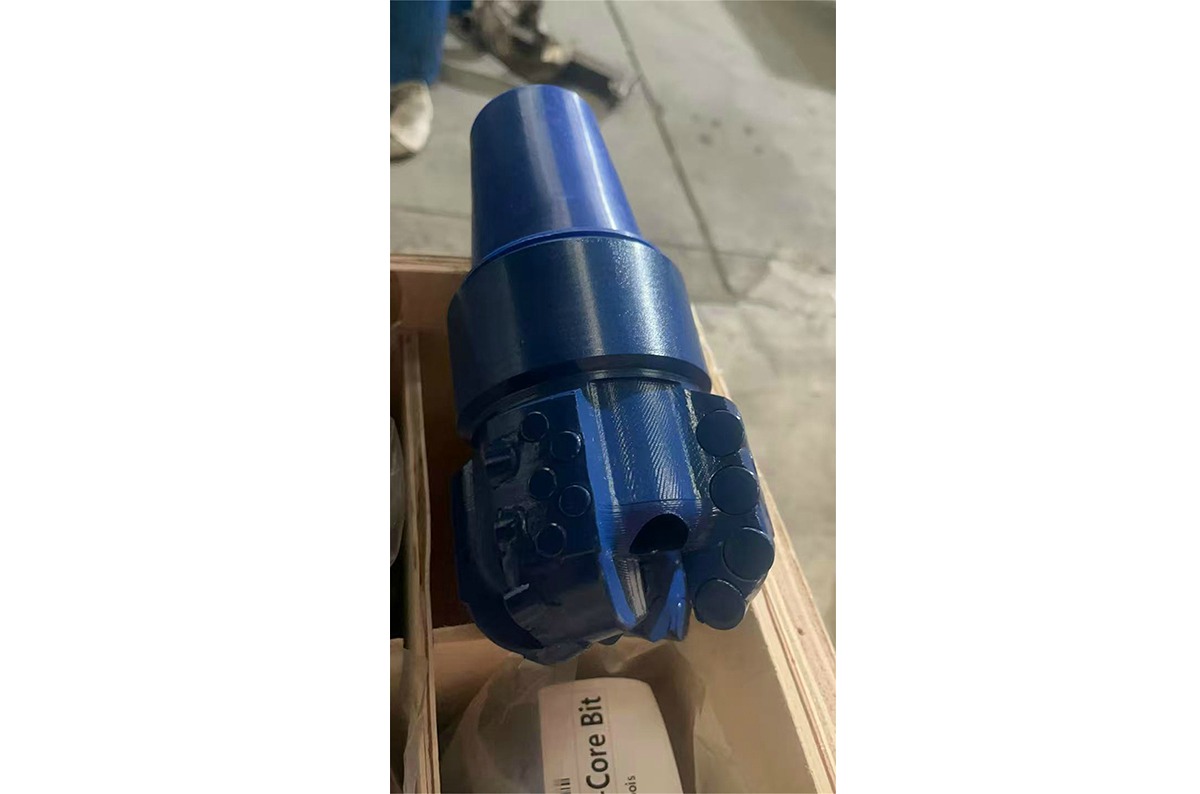

Non-Coring (Full Hole) Bits: Used for “destructive drilling” to create a borehole as quickly as possible (e.g., water wells, oil and gas).
