Casing Shoes

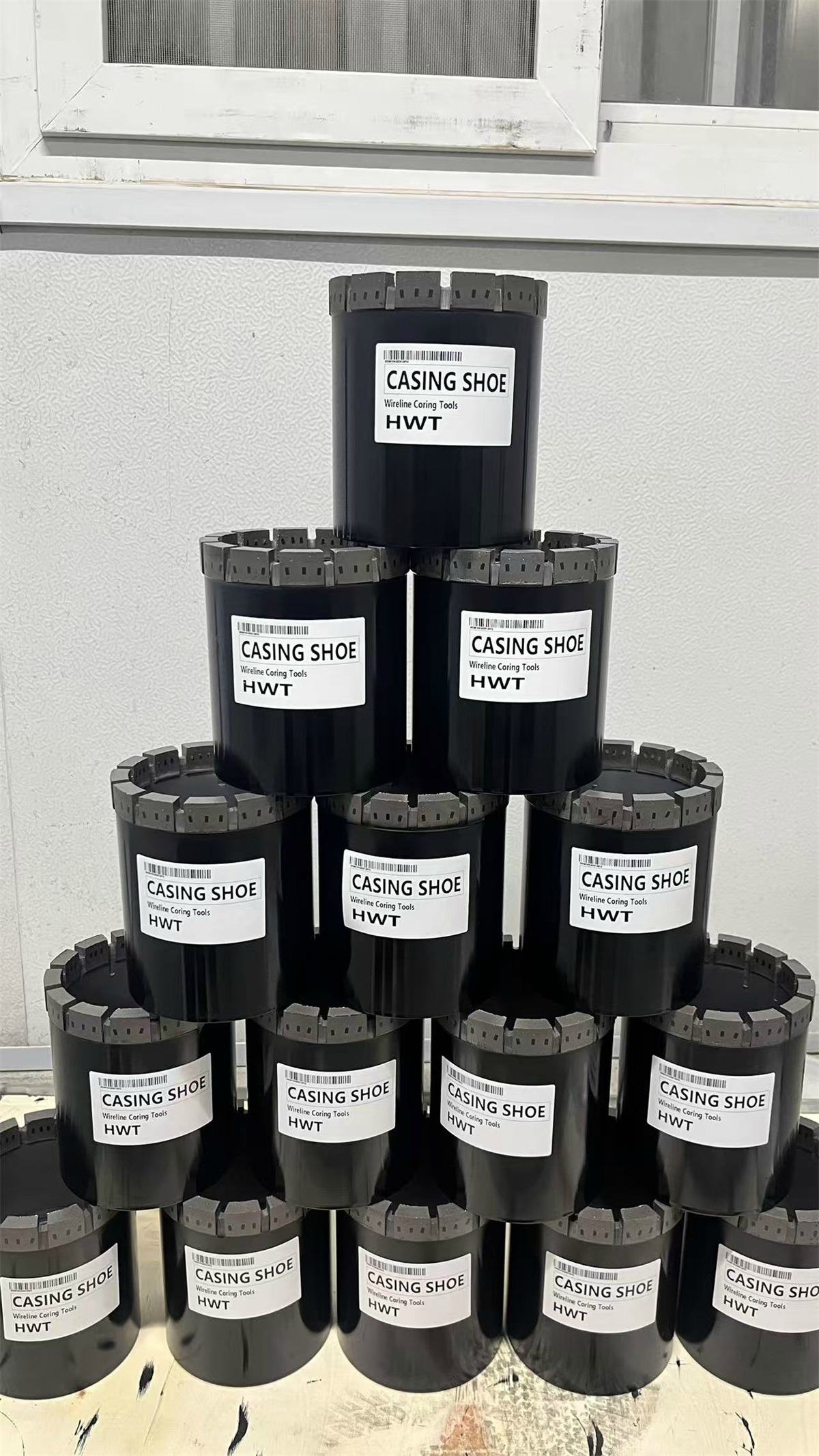

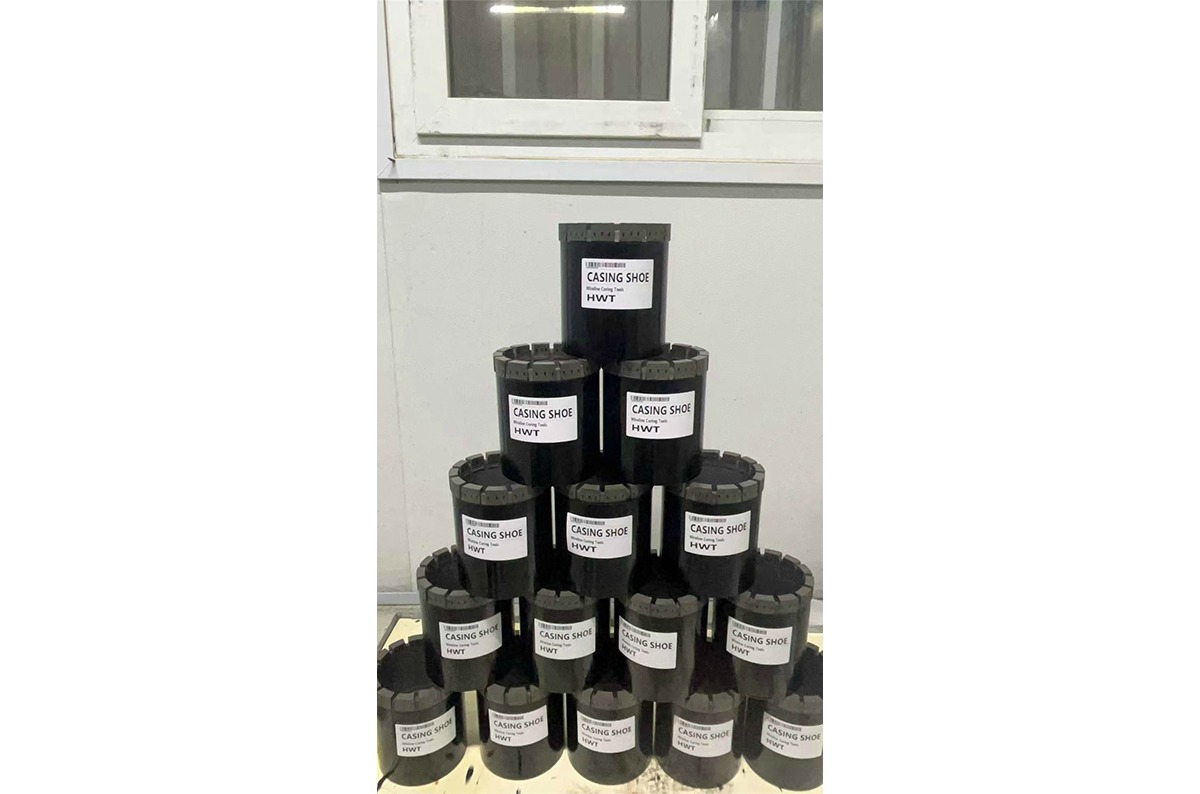

HWT and PWT casing shoes are impregnated diamond bits threaded to the leading edge of a casing string in exploration drilling. Their main function is to facilitate the advancement of the casing through unstable overburden (like sand, gravel, and boulders) and seat it securely into competent bedrock, forming a sealed path for the drill string.
Key Features and Function
Penetration: The diamond-impregnated cutting surface allows the shoe to ream and drill through difficult ground conditions effectively.
Seating: It creates a tight seal once driven into the bedrock, which prevents the loss of drilling fluid (mud or water) circulation into the surrounding formations.
Protection: It protects the leading edge of the casing tube from getting caught on irregularities or damaged by abrasive formations in the borehole.
Flush Interior: The inside diameter of the casing shoe is flush with the inside diameter of the casing pipe, ensuring that the core barrel assembly can pass freely through the casing without obstruction.
Optimized Threads: The HWT and PWT casings feature a tapered, buttress thread design with fewer threads per inch compared to standard HW/PW casing. This design is engineered for easier and faster “make and break” (connecting and disconnecting), increased strength, and reusability, which is especially useful when the casing is to be retrieved from difficult ground conditions.
