Drag Bits

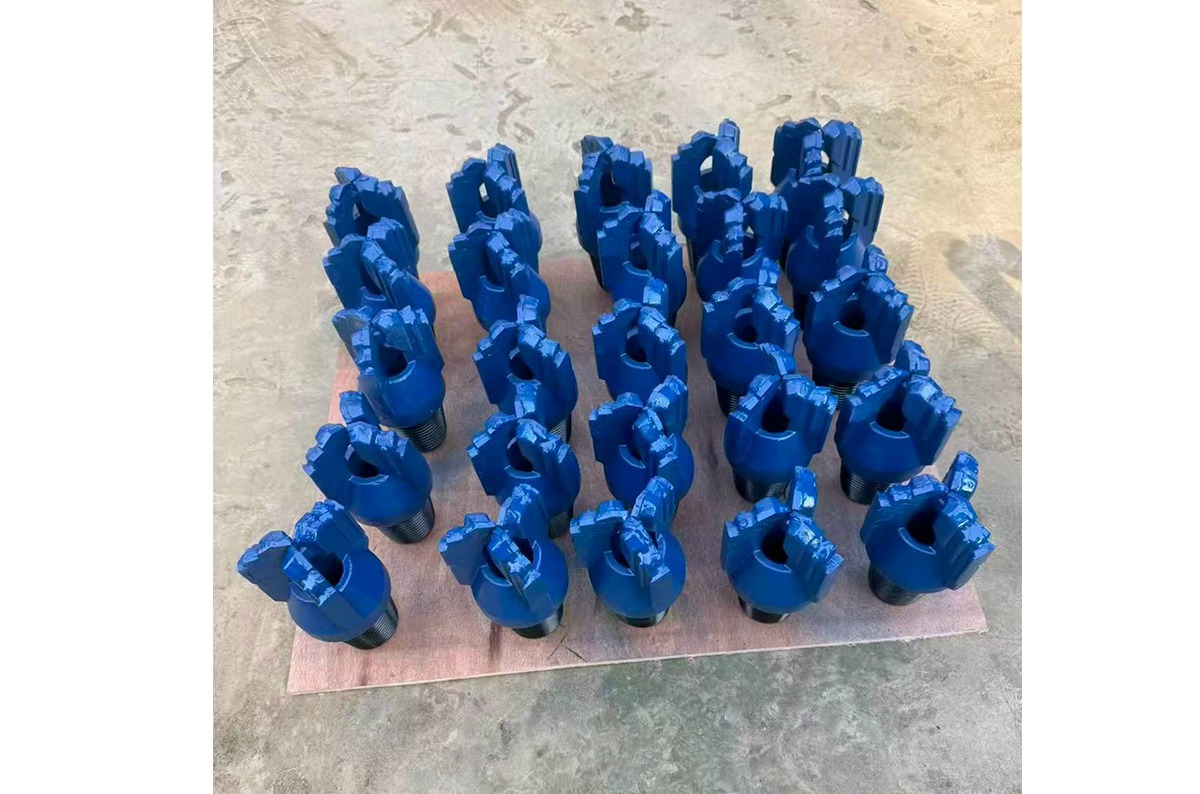

Drag bits are fixed-cutter drill bits designed primarily for rapid, cost-effective drilling in soft, unconsolidated formations such as sand, clay, and soft shale. Unlike tricone bits that crush rock, drag bits use a shearing and scraping action to slice through material, making them highly efficient for creating pilot holes and shallow wells.
Key Types and Designs
The cutting profile is typically chosen based on the balance between speed and durability:

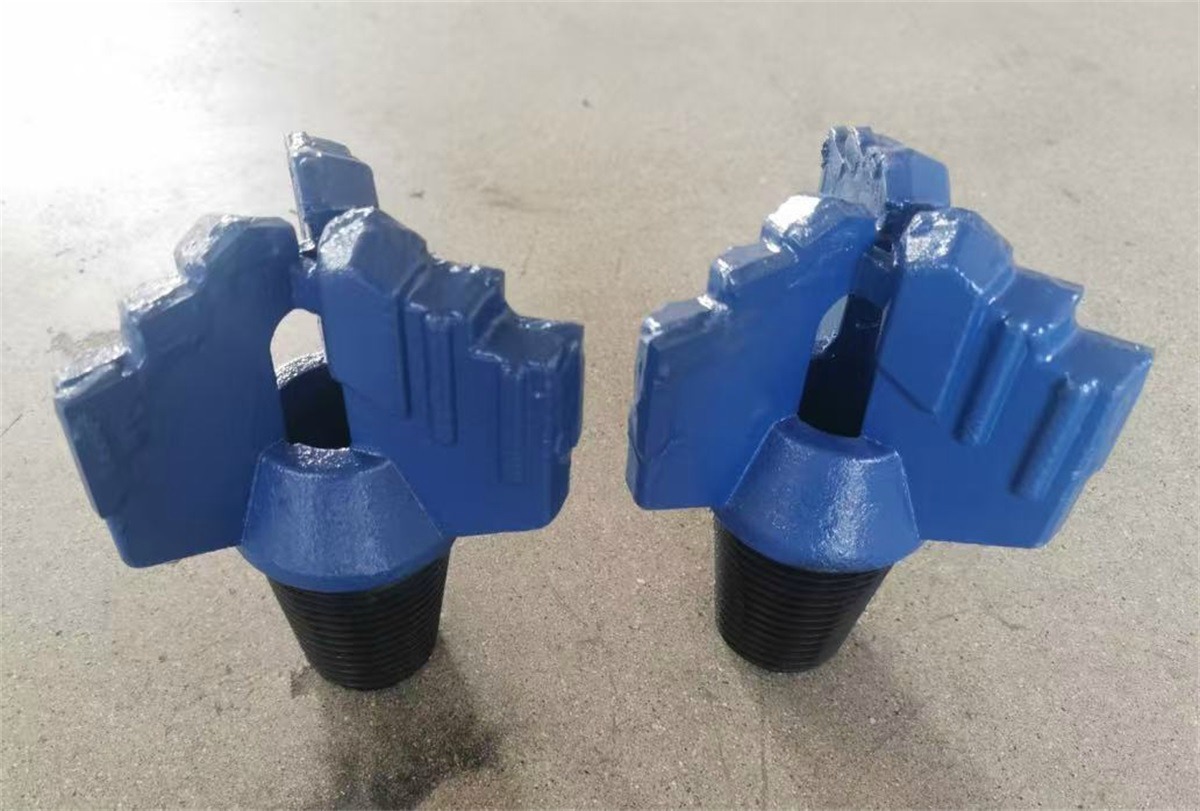

Step-Type Drag Bits: Feature a stepped profile with multiple cutting edges at different levels. This is the most aggressive design, offering the highest Rate of Penetration (ROP) in very soft materials like mud and loose sand.
Chevron-Type Drag Bits: Identified by their V-shaped or chevron wing pattern. They provide a smoother, more stable cutting action and are more durable than step bits, making them suitable for slightly harder or more abrasive formations like soft sandstone or limestone.

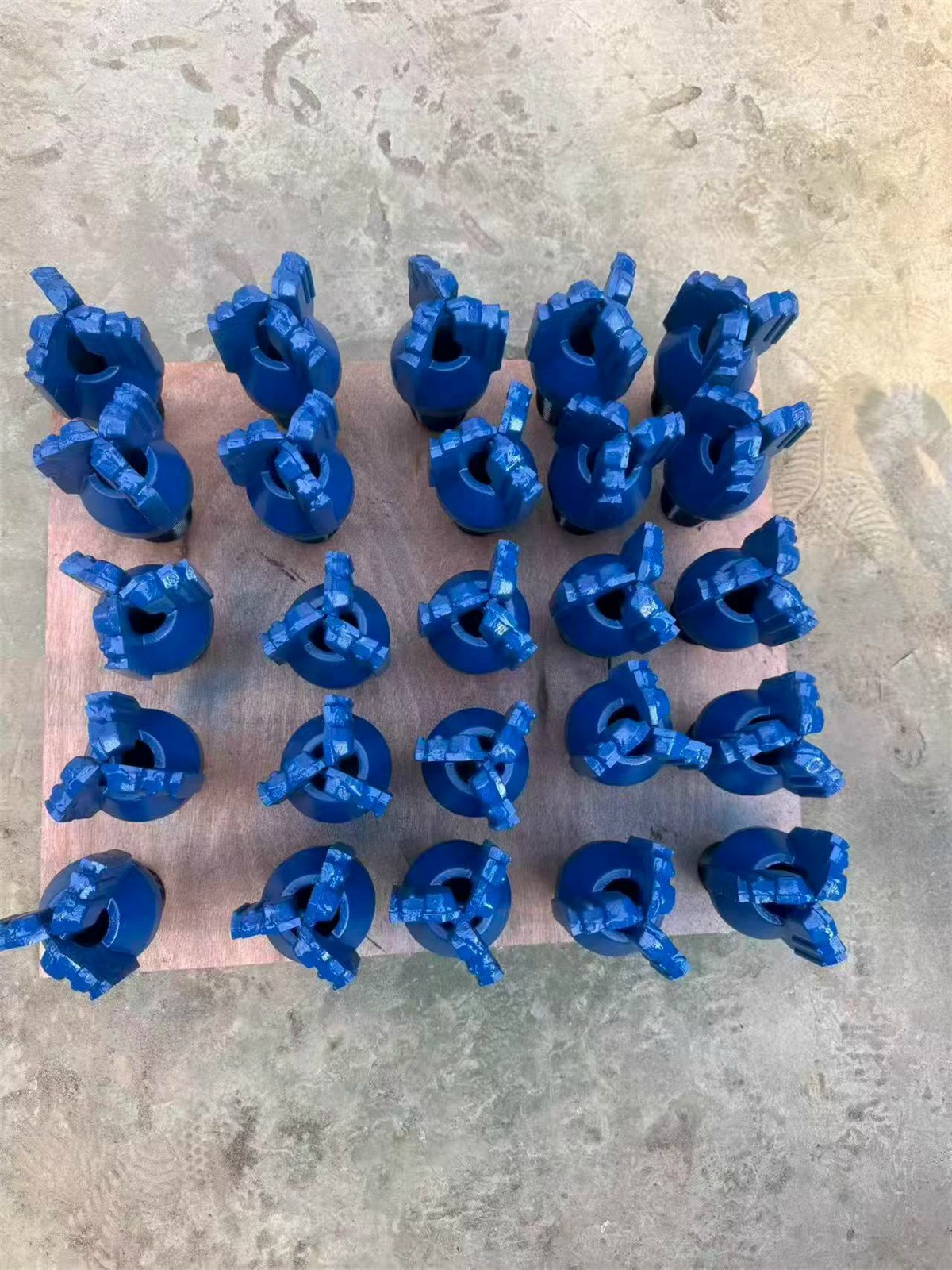

Wing Count: Available in 3-wing (standard balance of speed and stability) or 4-wing configurations (increased durability and straighter holes)
