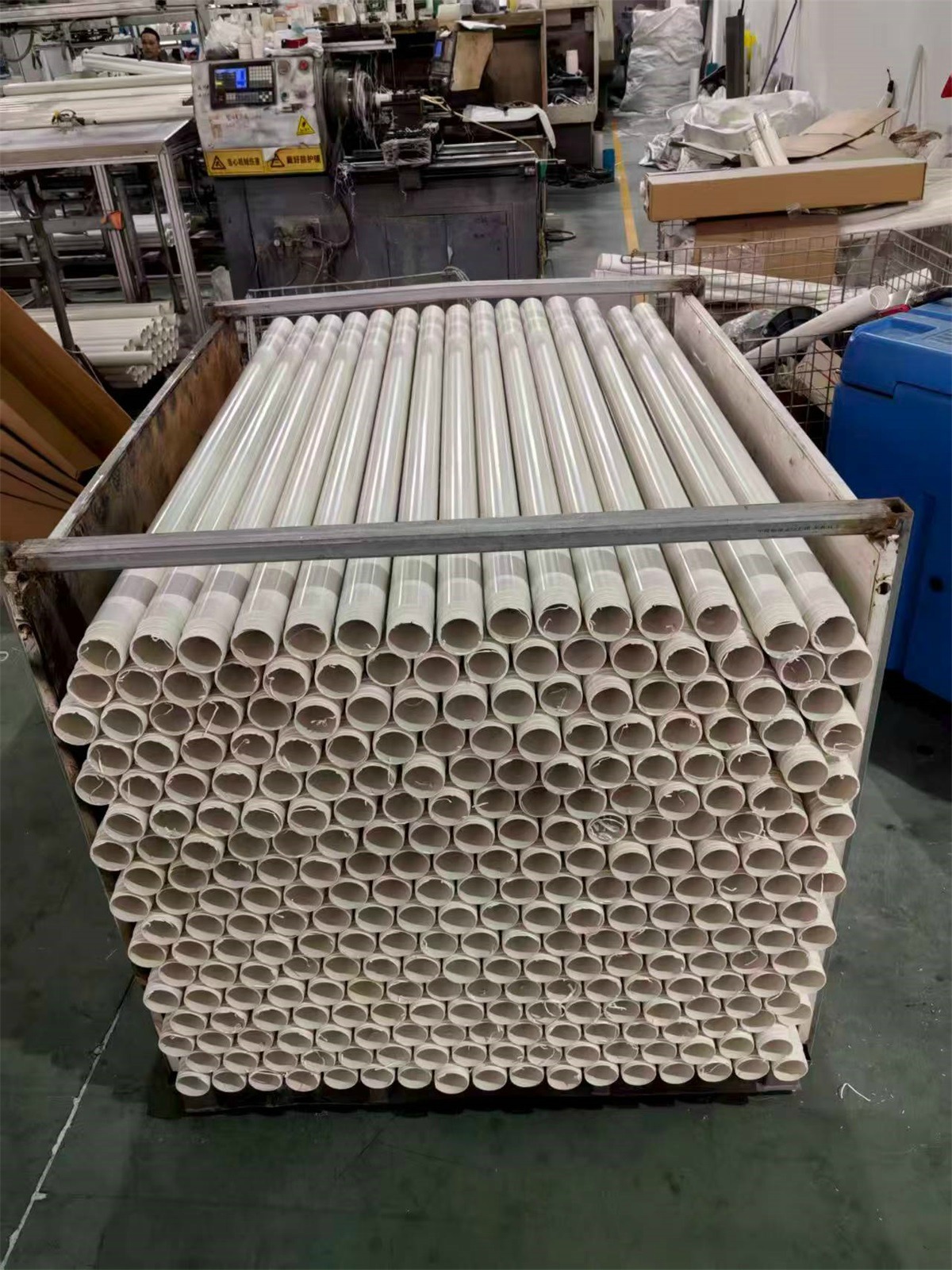

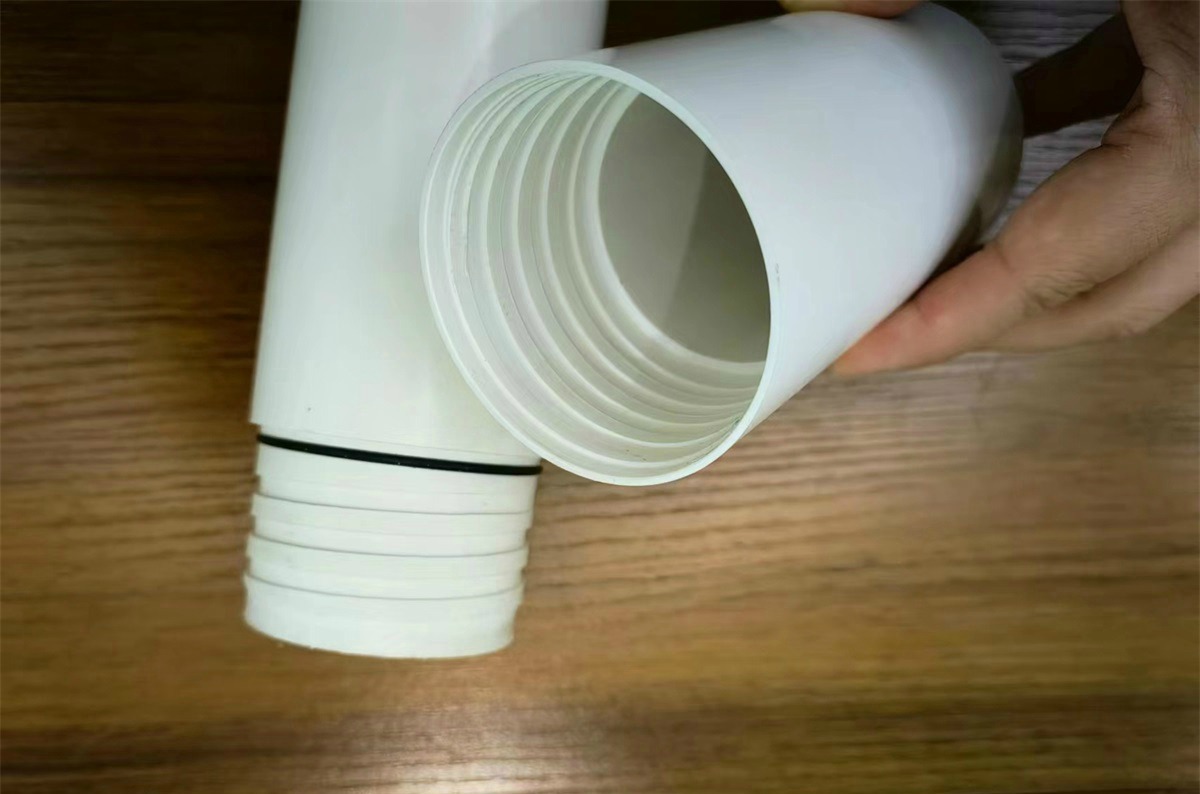

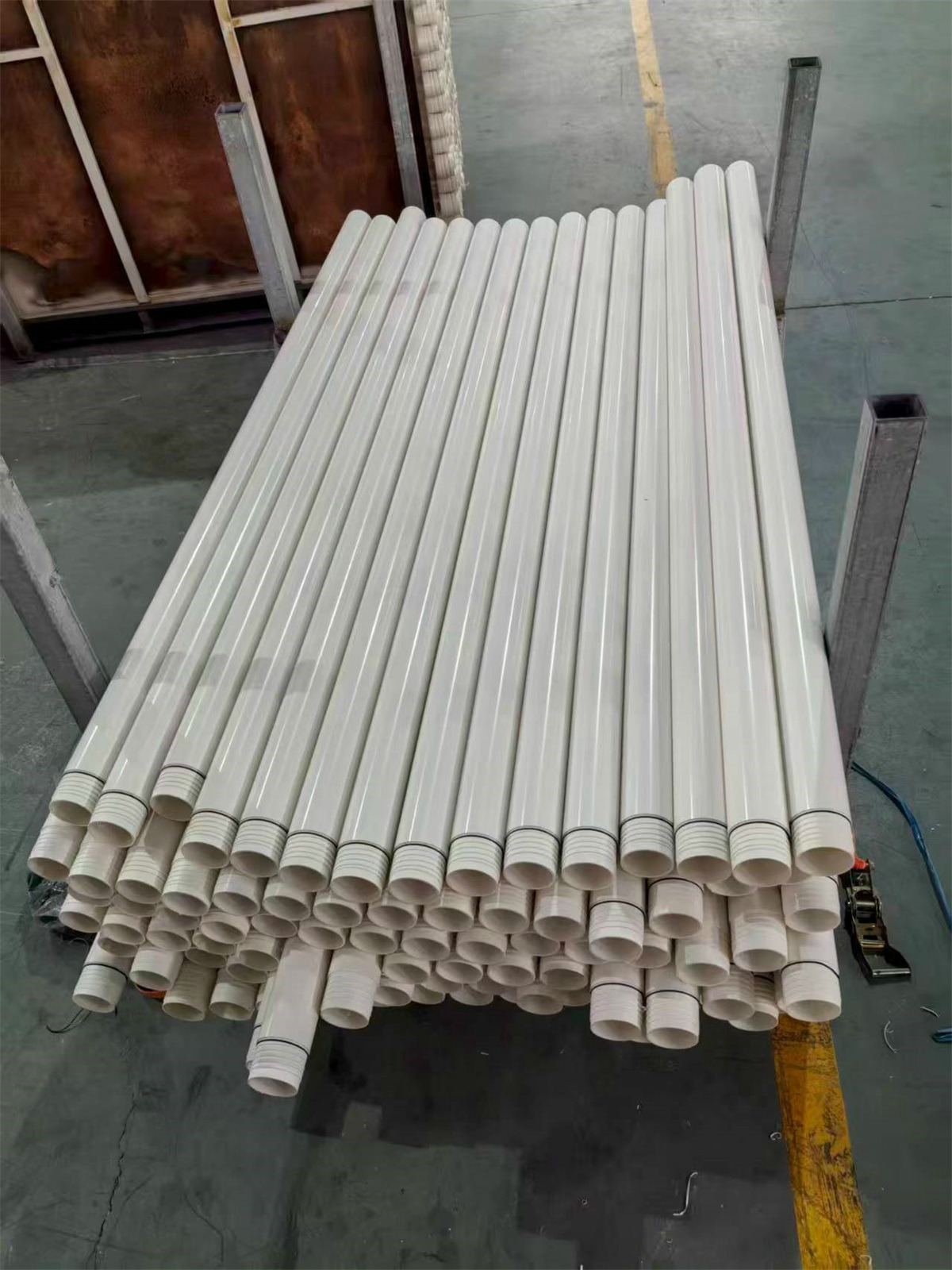

Well Casing/Screen PVC Pipe

Polaris’ well pipe is a standard white PVC pipe frequently used for shallow water well casings, irrigation systems, and potable water distribution. It is valued for its high impact strength and resistance to corrosion, rust, and chemical degradation.
Physical Specifications
Dimensions: It has an outside diameter (O.D.) of 2.375 inches (2-3/8″) and an average inside diameter (I.D.) of 2.047 to 2.067 inches.
Wall Thickness: The standard nominal wall thickness is 0.154 inches.
Weight: Approximately 0.703 lbs per foot.
Lengths: Commonly available in 5foot and 10foot sections.
Pressure Rating: Rated for a maximum working pressure of 280 PSI at 73°F (23°C).
Temperature Range: Designed for cold water applications with a maximum operating temperature of 140°F (60°C).
Standards: Often dual-marked for ASTM D1785 (pressure pipe) and ASTM F480 (standard for well casing). It is typically NSF 61 certified for potable water.
